Protocol Layers

The communication between the nodes in a packet data network must be precisely defined to ensure correct interpretation of the packets by the receiving intermediate and the end systems. The packets exchanged between nodes are defined by a protocol - or communications language.

There are many functions which may be need to be performed by a protocol. These range from the specification of connectors, addresses of the communications nodes, identification of interfaces, options, flow control, reliability, error reporting, synchronisation, etc. In practice there are so many different functions, that a set (also known as suite or stack) of protocols are usually defined. Each protocol in the suite handles one specific aspect of the communication.

The protocols are usually structured together to form a layered design (also known as a "protocol stack"). All major telecommunication network architectures currently used or being developed use layered protocol architectures. The precise functions in each layer vary. In each case, however, there is a distinction between the functions of the lower (network) layers, which are primarily designed to provide a connection or path between users to hide details of underlying communications facilities, and the upper (or higher) layers, which ensure data exchanged are in correct and understandable form. The upper layers are sometimes known as "middleware" because they provide software in the computer which convert data between what the applications programs expect, and what the network can transport. The transport layer provides the connection between the upper (applications-oriented) layers and the lower (or network-oriented) layers.

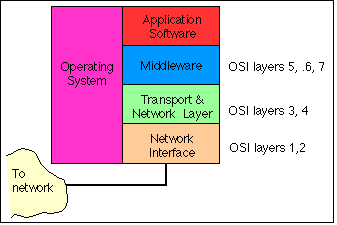

Overview of layering of protocol functions

(You may click on a layer in this diagram to find out more about the operation of the layer)

The basic idea of a layered architecture is to divide the design into small pieces. Each layer adds to the services provided by the lower layers in such a manner that the highest layer is provided a full set of services to manage communications and run distributed applications. A basic principle is to ensure independence of layers by defining services provided by each layer to the next higher layer without defining how the services are to be performed. This permits changes in a layer without affecting other layers. Prior to the use of layered protocol architectures, simple changes such as adding one terminal type to the list of those supported by an architecture often required changes to essentially all communications software at a site.

Protocol Stacks

The protocol stacks were once defined using proprietary documentation - each manufacturer wrote a comprehensive document describing the protocol. This approach was appropriate when the cost of computers was very high and communications software was "cheap" in comparison. Once computers became readily available at economic prices, users saw the need to interconnect the computers from different manufacturers using computer networks. It was costly to connect computers with different proprietary protocols, since for each pair of protocols a separate "gateway" product had to be developed. This process was made more complicated in some cases, since variants of the protocol existed and not all variants were defined by published documents.

The Open Systems Interconnection (OSI) architecture has been developed by the International Organisation for Standardisation (ISO) to describe the operation and design of layered protocol architectures. This forms a valuable reference model and defines much of the language used in data communications.


Gorry Fairhurst - Date: 01/10/2001 EG3557
